Monkey Cranes and Jib Cranes is widely used to lift building the material such as bricks , sand cement and Iron during construction, we are premier location for manufacturing the Monkey Cranes and Jib Cranes with unique advantage such as:

Good Quality Steel and Iron used in manufacturing
Value for money low cost effective product
Can be Install at any floor as per requirement
Available in Loading Capabilities form 250 KG to 1000 kG

You can Download Technical Specifications from here or In download Area

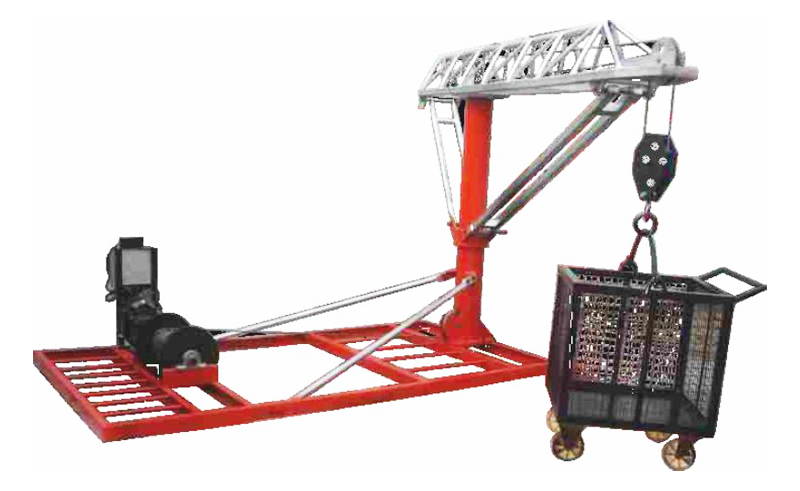

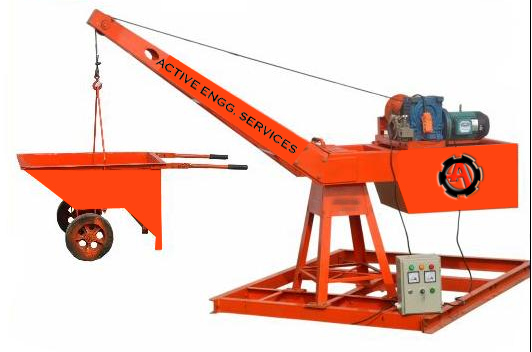

JIB CRANE AE 500H	VIEW
Jib Working: 7.5 feet Total load capacity - 500kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Rope: 10MM, length-as per required Control panel , remote control & safety device Motor: 7.5 HP with DC brake (S-4) (single speed) Gear Box : Imported Supply: 3-phase 415 V (AC)

JIB CRANE AE 500HD	VIEW
Jib Working: 7.5 feet Total load capacity - 500kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Rope: 10MM, length-as per required Control panel , remote control & safety device Motor: 7.5 HP with DC brake (S-4) (Double Speed ) Gear Box : Imported Supply: 3-phase 415 V (AC)

JIB CRANE AE 500HVF	VIEW
Jib Working: 7.5 feet Total load capacity - 500kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Rope: 10MM, length-as per required Motor: 7.5 HP with DC brake (S-4) Gear Box : Imported Control panel , remote control & safety device Special: variable speed control Supply: 3-phase 415 V (AC )

JIB CRANE AE 300H	VIEW
Jib Working: 7.5 feet Total load capacity - 300kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Motor: 5 HP with DC brake (S-4) Rope: 8MM, length-as per required Control panel , remote control & safety device Gear Box : Imported Supply: 3-phase 415 V (AC)

JIB CRANE AE 500A	VIEW
Jib Working: 7.5 feet Total load capacity - 500kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Rope:10MM, length-as per required Control panel & remote control Motor: 7.5 HP with AC brake (S-1) Gear Box : Indian Supply: 3-phase 415 V (AC)

JIB CRANE AE 300A	VIEW
Jib Working: 7.5 feet Total load capacity - 300kg Jib movement: 360 Degree Base space = 8 x 5 (Separate Winch) Stand height: 6 feet Total Boom Length: 10 feet Rope: 8MM,length-as per required Motor: 5 HP with AC brake (S-1) Gear Box : Indian Supply: 3-phase 415 V (AC)

JIB CRANE AE 200SF (Single Phase operations)	VIEW
Jib Working: Standard Total load capacity - 150kg Jib movement: 360 Degree (Standard mounting) Rope:8MM, length-as per required Control panel , remote control & safety device Motor: 3 HP with DC brake (S-1) Gear Box: Indian Supply: Single Phase 230V Special: wave convertor single phase to three phase

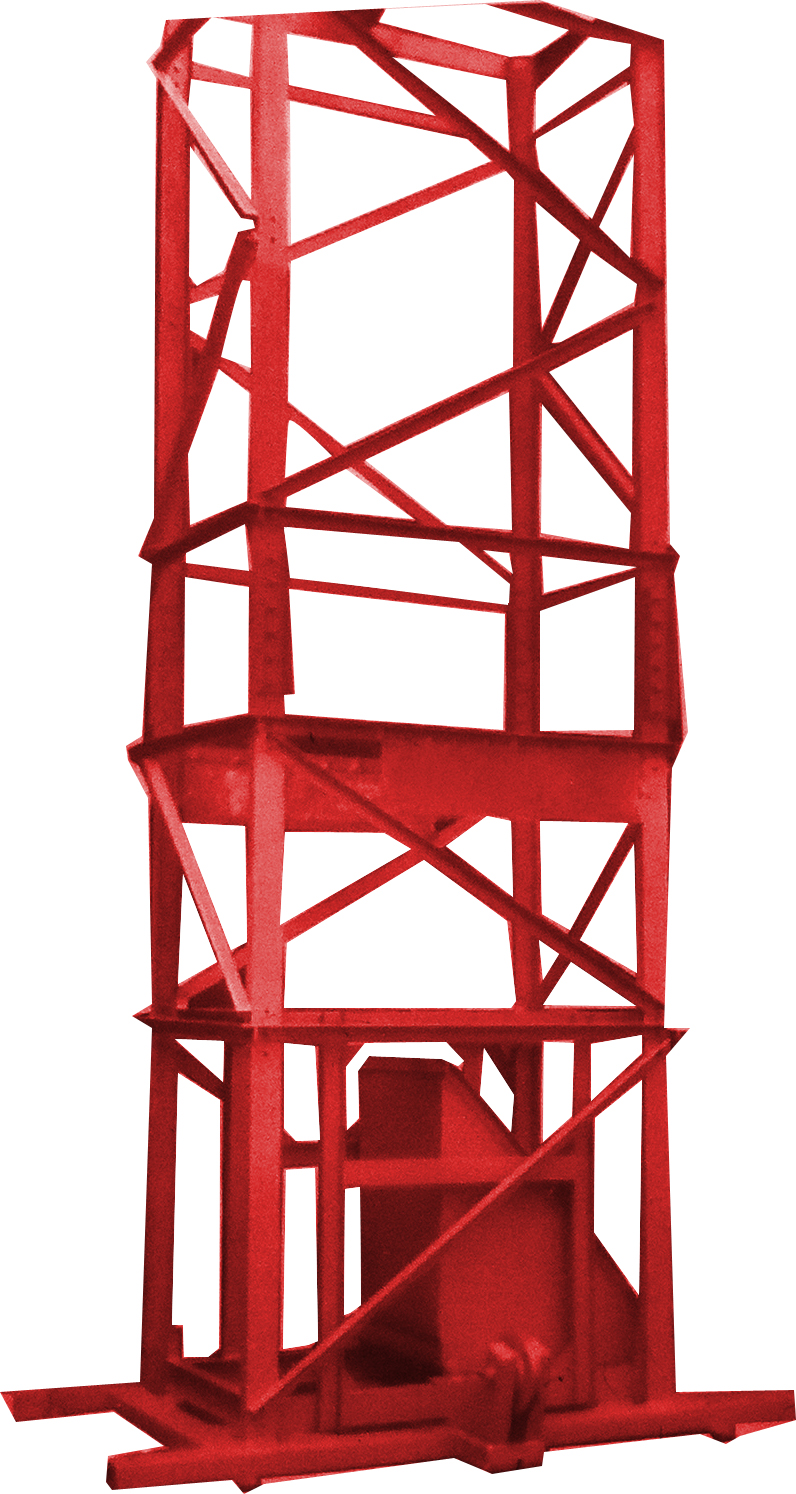

Builder Hoist

BUILDER HOIST AE 200	VIEW
Motor : 20 HP Make : Standard Maximum Height : upto 200 feet Speed : 33 meter/min Rope:12MM –length suitable for 200 ft Channel size : 4 channel 100mmx50mmx 6mm Channel Make : SAIL/VIZAG Capacity:1000kg

BUILDER HOIST AE 100	VIEW
otor : 10 HP Make : Standard Maximum Height : upto 100 feet Speed : 33 meter/min Rope:12MM –length suitable for 100 ft Channel size : 4 channel 100mmx50mmx 6mm Channel Make : SAIL/VIZAG Capacity:1000kg

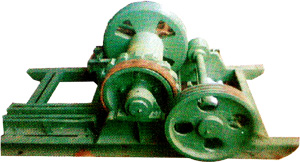

Steel Winch

WINCH ASSEMBLY FOR DOUBLE CHANNEL	VIEW
Motor : 7.5HP with brake(S4) Gear Box : Standard Bearing : 2 Rope:10MM –Length as required Drum Assembly Control Panel and Remote Assembly Capacity:500kg

WINCH ASSEMBLY FOR TMT LIFTING	VIEW
Motor : 7.5HP with brake(S4) Gear Box : Italian Pulley : 2 bearing Pulley with complete upper bracket , one Bearing Pulley for ground with bearing and Buket Rope : 10 MM –Length as required Panel and Remote Assembly Capacity:500kg

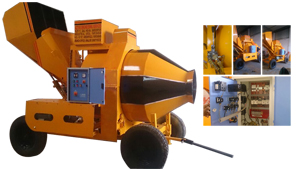

MINI MOBILE BATCHING PLANT

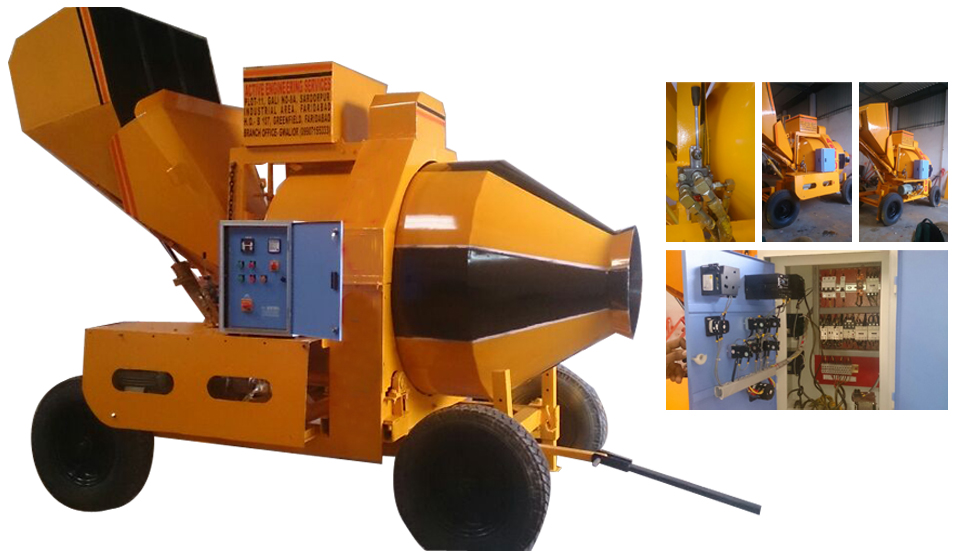

Mini Mobile Batching Plant AE 10

VIEW

Capacity : 10MH
Drum Type: Reversible
Type : 3 Bin
Load Cell : 03
Water System : Automatic
Water Pump: 1HP ( 3 Phase)
Motor Type : 10 HP
Motor make : ABB/Kirlosker/Standard
Stand : 04 Jack( Separate)
Water tank capacity : 180 – 200 liters
Control Panel : Schneider /TC
Supply : 25 KVA -32KVA
Material Lift : Hydraulic jack(heavy Duty)
Pneumatic Wheel
Digital Micro Processor Indicator
Separate indicator for each bin
Safety Devices
All Indicators are form Reputed Companies

MIniBatching plant active engin services

Mini Mobile Batching Plant AE 15

VIEW

Capacity : 15MH
Drum Type: Reversible
Type : 3 Bin
Load Cell : 03
Water System : Automatic
Water Pump: 1HP ( 3 Phase)
Motor Type : 12.5 HP
Motor make : ABB/Kirlosker/Standard
Stand : 04 Jack( Separate)
Water tank capacity : 180 – 200 liters
Control Panel : Schneider /TC
Supply : 25 KVA -32KVA
Gear Box : 12.5HP
Material Lift : Hydraulic jack(heavy Duty)
Pneumatic Wheel
Digital Micro Processor Indicator
Separate indicator for each bin
Safety Devices
All Indicators are form Reputed Companies

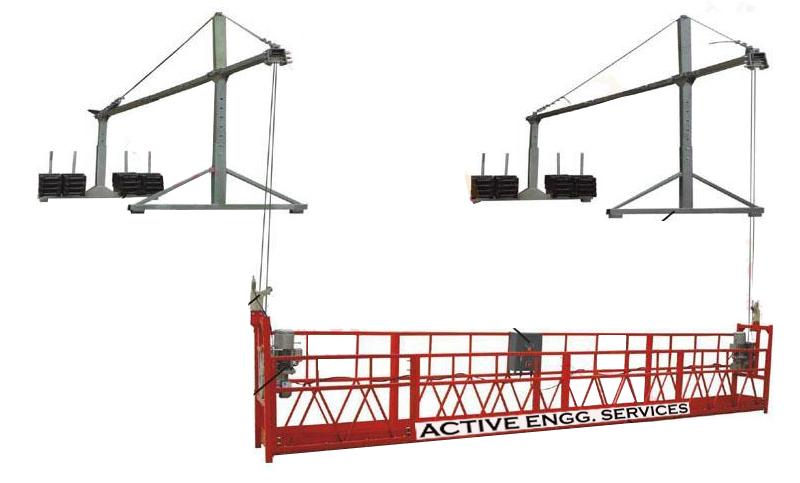

SUSPENDED PLATFORM

AES 800SP

VIEW

Platform size: 2.5M x 3 = 7.5 M
Material: Aluminum /Steel Platform- Hot Galvanized
Balance Weight : 800/1000 kgs
Rated Load : 800kgs
Ascend Speed (working Speed) : 9-11m/min
Structure Weight : 600-700kgs Approx

ELECTRIC MOTOR SPECIFICATION

Power : 1.8 KW x 2
Voltage : 415v Ac 3 Phase
Breaking : 15NM
Safety Lock : Tilt Proof Safety lock ( 2 nos.)

SUSPENDED MECHANISM
Height Adjustment : 1.15m – 1.75m
Front Beam Extension : 1.1m -1.7m

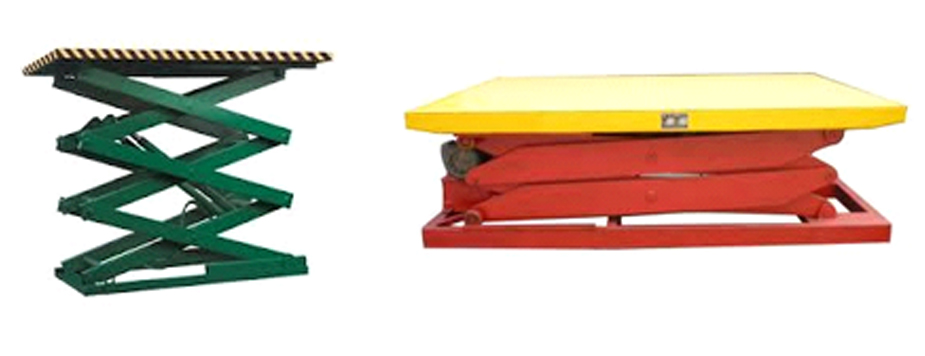

SEMI ELECTRICAL SCISSOR LIFT TABLE
TECHNICAL SPECIFICATIONS	VIEW
Capacity: 1000kg (As per Customer) Table size : 1200x1200 mm (As per Customer) Base : 1200x1200 mm (According Top Table) Lift height : 3350 mm Lowered height : 650 mm Rest height : 4000 mm (As per Customer) Wheels : C.I & nylon with bearings Power Pack: Inbuilt Operation : Remote Controlled
